XUNKUNER CNC Linear Motion Stage Actuator 300mm Effective Stroke, 1204 Ball Screw Linear Slide with NEMA23 Stepper Motor, Double Optical Axis Guide Rail for CNC Router Engraving Milling Machine
4.9 (41 items)
Limited Time SaleUntil the end
04
16
31
US$63.00 cheaper than the new price!!
Free shipping for purchases over $99 ( Details )
Free cash-on-delivery fees for purchases over $99
Free cash-on-delivery fees for purchases over $99
See all stores
Please note that the sales price and tax displayed may differ between online and in-store. Also, the product may be out of stock in-store.
Used US$42.00
Product details
| Management number | 228084671 | Release Date | 2026/05/31 | List Price | US$42.00 | Model Number | 228084671 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

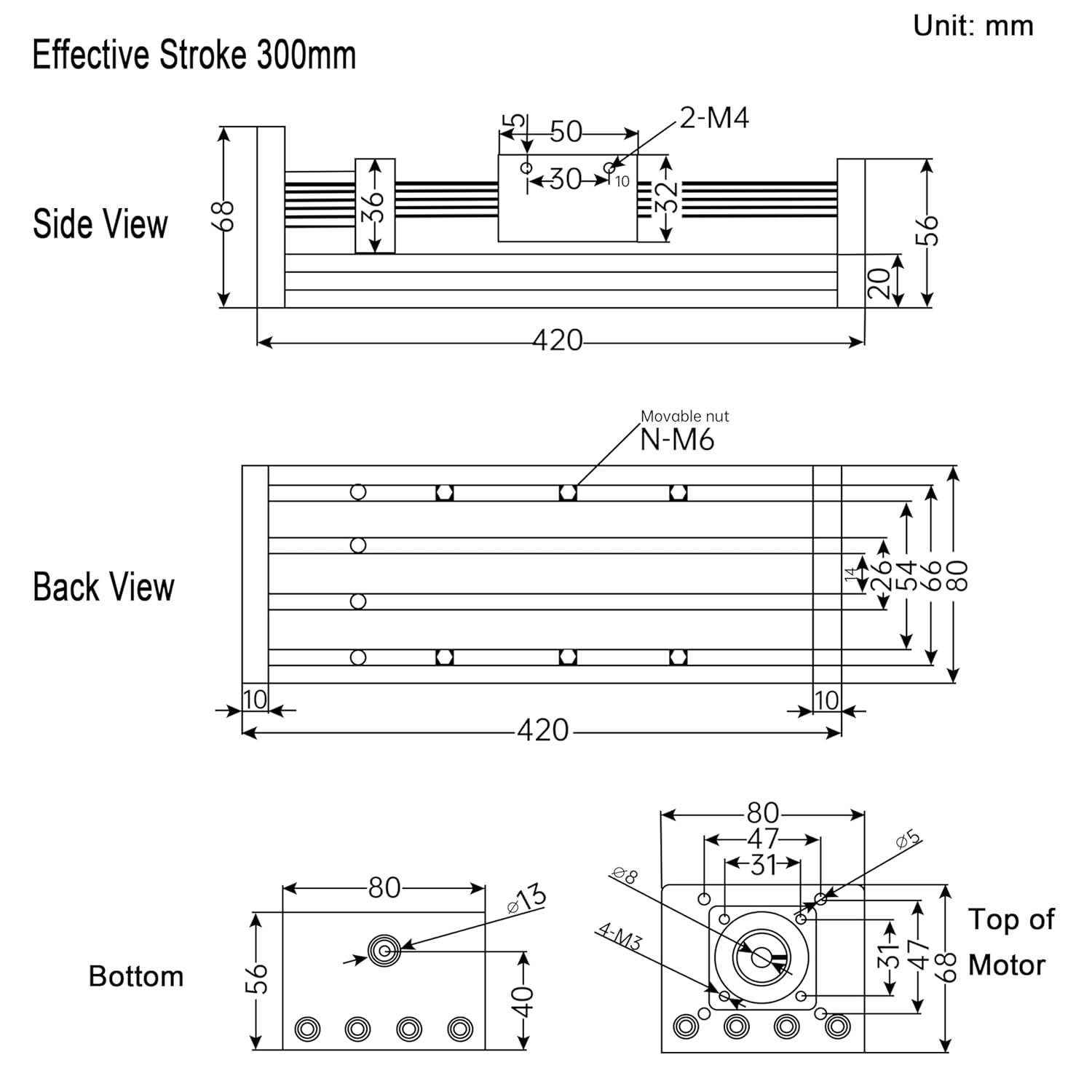

- Specification: Screw: Ball screw drive 1204, diameter 12mm; Load capacity: Horizontal load capacity: 30kg, vertical load capacity: 15kg; Width: 80mm; Material: Aluminum alloy; Guide rail: 20mm square linear guide rail
- 1204 ball screw: made of bearing steel material, with low noise; Effective travel length: 300mm/11.82 inches. Screw accuracy grade: C7. Flange nut screw, accuracy up to 0.03mm/0.0012 '', lead: 4mm/0.013 '' (one turn of screw), diameter: 12mm/0.5 ''
- Easy Installation ： 80mm aluminum profile base, M4 movable nut at the bottom, side mounting groove for easy fixation, M3 nut for limited installation, simple and convenient installation. Widely used: can be combined with multi axis, horizontal cross, gantry, three-axis, four axis, etc
- Stepper motor: nema23 motor size: 57 * 57 * 56mm; torque: 1.26N. m; Current: 3A; Shaft: Single output shaft; Voltage: 12-36V (typical value 24V); Control mode: pulse control; Output speed: 1000 revolutions per minute (within 600 revolutions per minute). Wiring: Red (A+), Green (A -), Yellow (B+), Blue (B -)
- Adopting dual axis guide rail: 12 chrome plated shaft, linear bearing, more stable and durable
| ASIN | B0G2BGMGLV |
|---|---|
| Item Weight | 7.15 pounds |
| Manufacturer | XUNKUNE |
| Package Dimensions | 20.28 x 4.84 x 4.49 inches |
