Wood Pellet Machine Sawdust Pressing Machine Wood Pellets Mill 6mm Particle Diameter 2-Head Rollers 220V

Product parameters: Voltage: 220V three-phase electricity Power: 7500W Production: 60KG Wood chip particle combustion value: 3000-4300 kcal/kg. Feed hopper inside diameter: 11in(28cm) Feed hopper outside diameter: 12.2in(31cm) Outlet size: 8.86in*6.1in(22.5*15.5cm) Note: 1. This machine is 220V three-phase, please pay attention to wiring issues when using it. 2. Before starting the machine,open the upper shell of the particle machine to determine if the nut above the pressure roller is secure. If there is any looseness, use a wrench to tighten it. 3. After connecting the power supply, turn on the machine to check if the rotation direction of the pressure roller is correct (counterclockwise direction). 4. Before starting the machine, please check whether the oil level inside the box meets the requirements and ensure that it is at the normal oil level (two-thirds of the oil mirror). 5. Check the oil temperature after 10 minutes of load operation, and the temperature rise should not exceed 50 ℃. 6. Please carry out daily maintenance and do not accumulate dust and oil stains on the outer frame of the gearbox to avoid affecting heat dissipation. 7. Remove the rubber ring from the brass vent nut before starting. 8. Replace the LCKC150#200# gear oil after 500 hours of use for the first oil change.

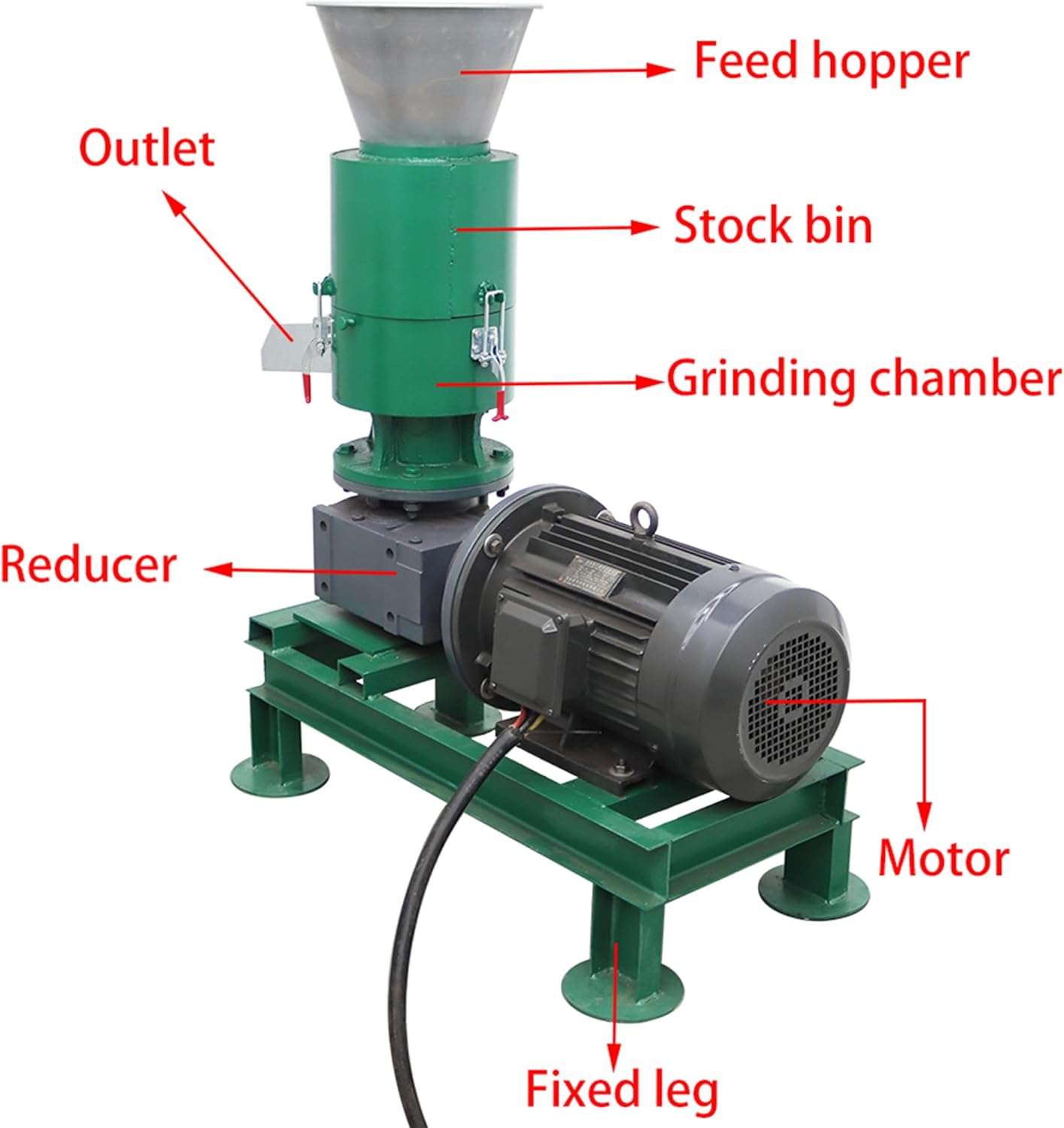

• [Application]: The 220V wood pellet machine is designed to press the forestry waste, such as sawdust, peanut shells, and rice husks, into fuel pellets. This machine is equipped with a 6mm holes grinding disc, please grind the material into powder before using this machine.
• [Enlarged feed&discharge port]: The machine adopts the design of enlarged feed port, more convenient to feed. Enlarged and widened discharge port to prevent feed splashing and facilitate the collection of feed.
• [Powerful Motor]: with 7500W strong power motor, the production can reach up to 60KG/H(130lb/h),This machine is 220V three-phase, not come with plug. We recommend that high power machines should be connected directly to the air switch for use.
• [High Quality Machine]: The machine adopts excellent materials and designed with large size feet for stable and long service life. This grinding disc hole diameter is 6MM. We also have machines of 8mm holes plate, and other sizes need to be customized.
• [Notice]: Before making pellets, check if the roller is balanced, the roller must be balanced ( can be adjust by the 2 adjustable nuts on the side)to avoid damage to the pressure roller and grinding disc.and please remove the flat 8-shaped rubber ring to avoid oil leakage before starting the machine.
